Solid Finned Nozzle Skid Extension
This Nozzle Extension does not have holes which makes it heavier than the standard four finned nozzle skid extension. The Material is Schedule 80 pipe and is painted finished.
| 1″ Size | 3/4″ Size | 1/2″ Size | Description |
| SFNC-4 | SFNC-34 | SFNC-412 | For Use with 4″ Pipe |
| SFNC-6 | SFNC-36 | SFNC-612 | For Use with 6″ Pipe |
| SFNC-8 | SFNC-38 | SFNC-812 | For Use with 8″ Pipe |
| SFNC-10 | SFNC-310 | SFNC-1012 | For Use with 10″ Pipe |
| SFNC-12 | SFNC-312 | SFNC-1212 | For Use with 12″ Pipe |
| SFNC-15 | SFNC-315 | SFNC-1512 | For Use with 15″ Pipe |
Available for retail purchase on our official Shopify store.
Click the logo below to shop this product.

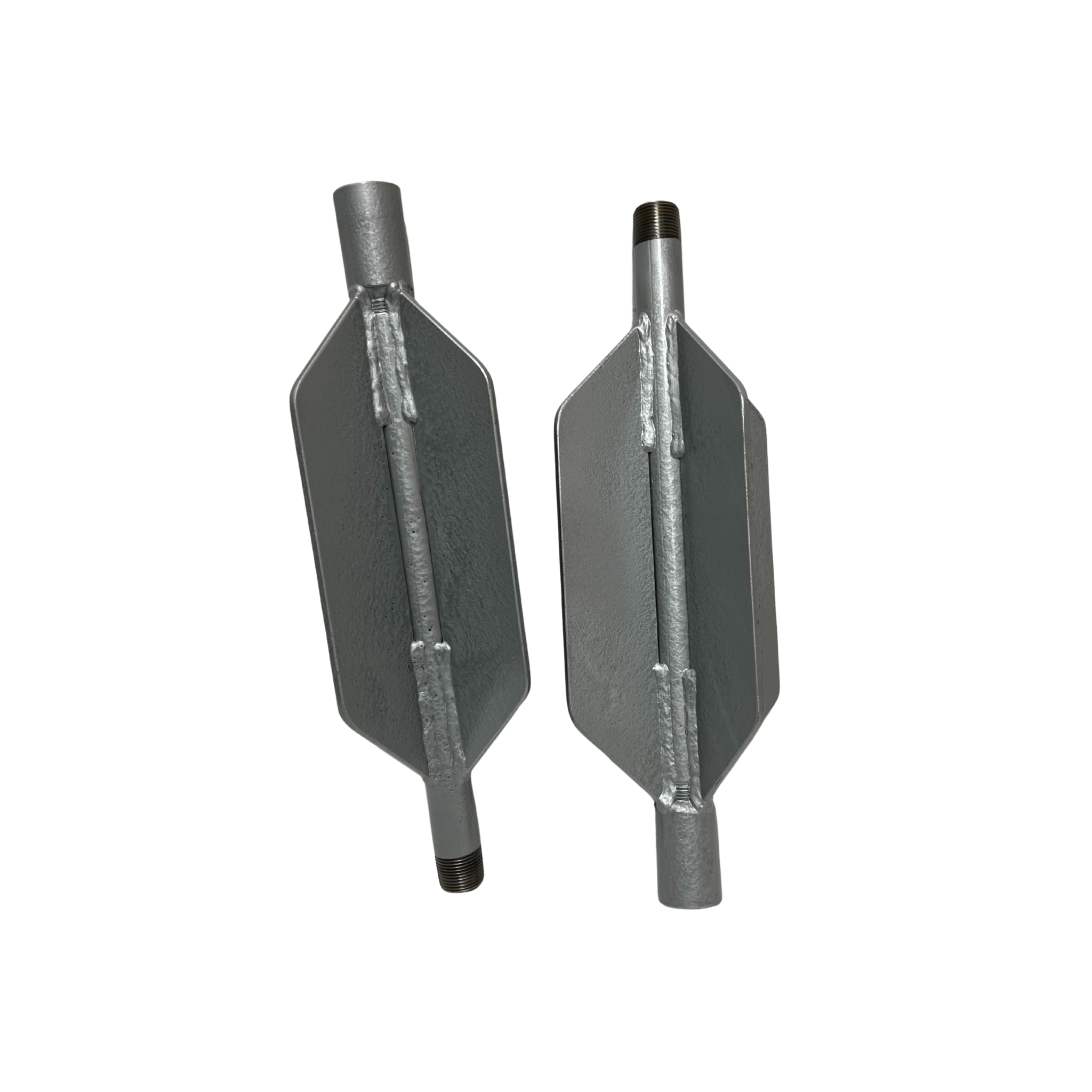

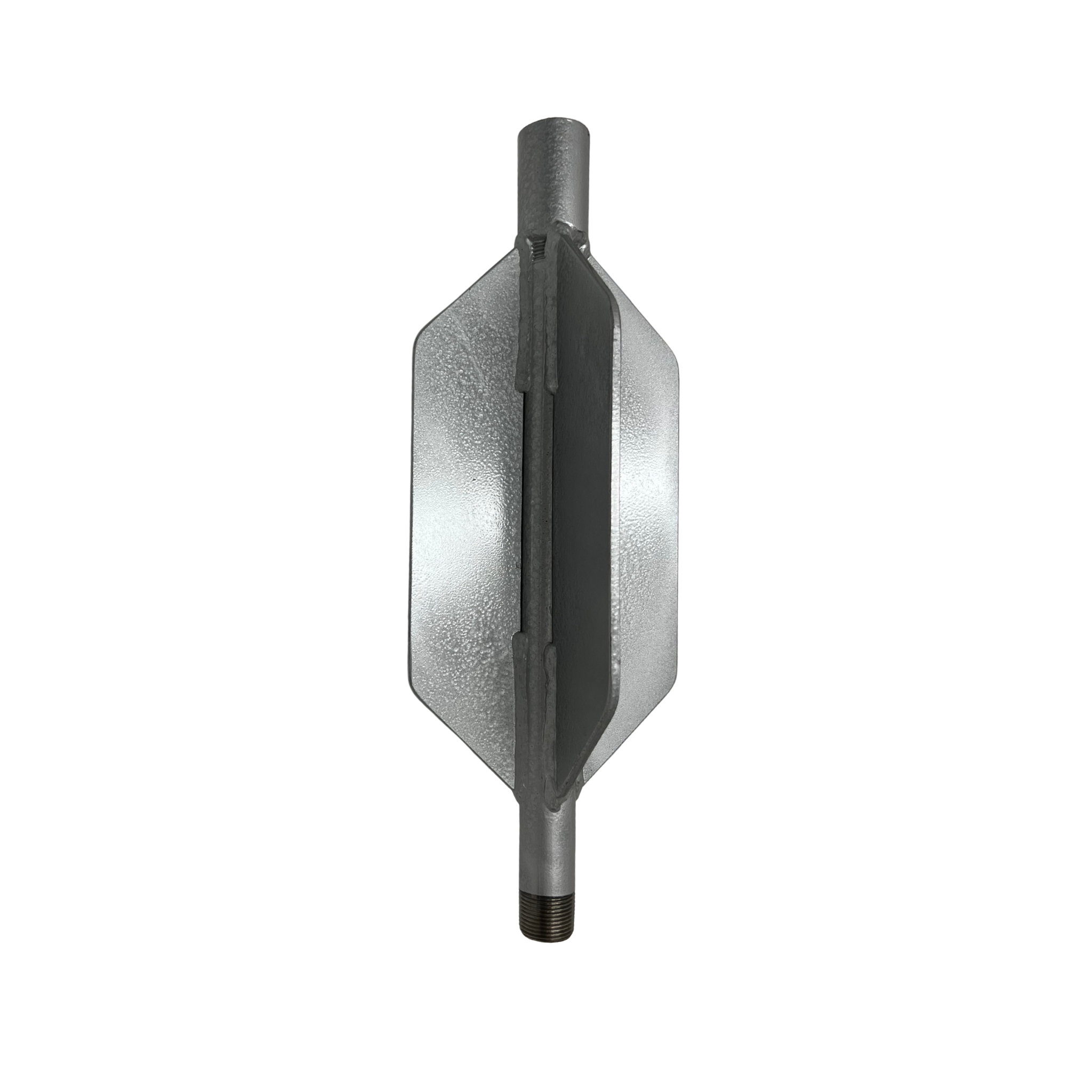

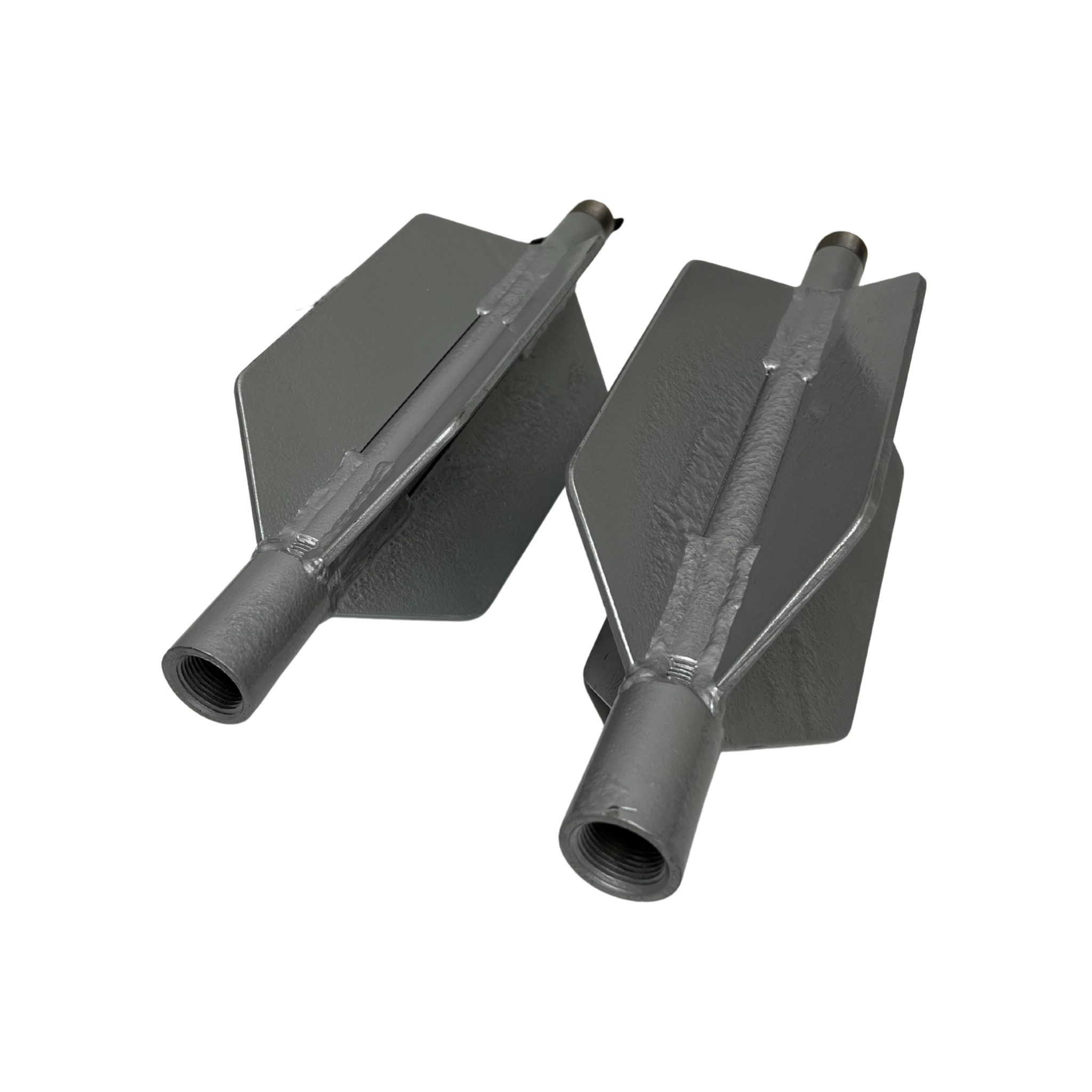

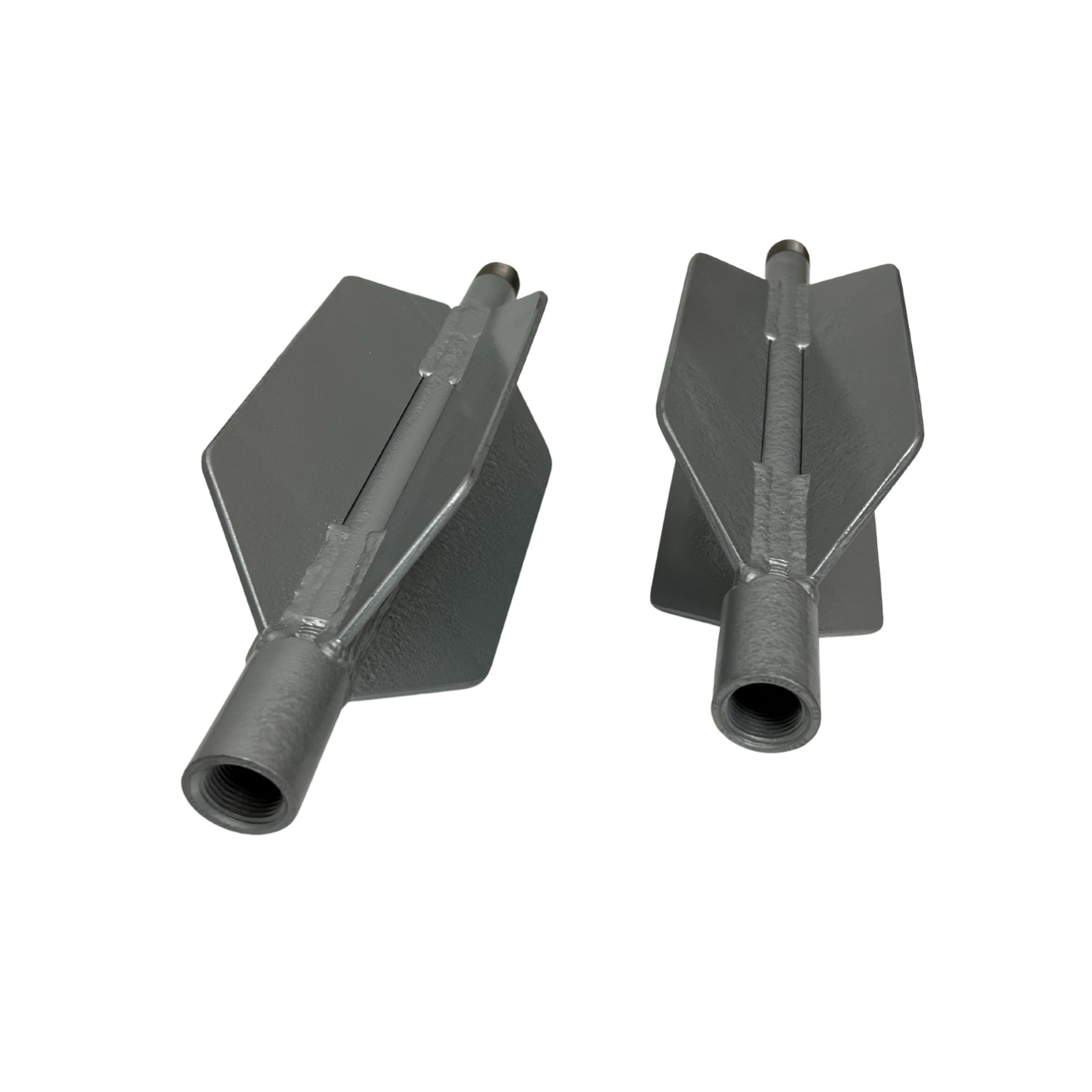

Solid Finned Nozzle Skid Extension
Solid fin nozzle skid extension designed to guide and stabilize sewer jetting nozzles with a heavier frame construction.
The Solid Finned Nozzle Skid Extension is designed to guide sewer jetting nozzles while operating inside pipelines. This nozzle skid extension uses a solid fin design to stabilize the nozzle assembly as it moves through the pipe during jetting operations.
Unlike finned skid designs with slot openings, this version features a solid frame without slot holes, resulting in a heavier construction. The unit is built from Schedule 80 pipe and includes a painted finish for use in sewer maintenance environments.
The unit is available with 1″, 3/4″, or 1/2″ hose connections and is designed for use in pipe sizes from 4″–15″.
Key Features
- Solid fin skid design for guiding sewer jetting nozzles
- No slot holes for a heavier skid construction
- Constructed from Schedule 80 pipe
- Painted finish for sewer maintenance use
- Hose connection options: 1″, 3/4″, or 1/2″
- Compatible pipe sizes: 4″–15″
Applications
- Sewer jetting operations
- Nozzle guidance inside pipelines
- Municipal sewer maintenance
- Contractor jetting equipment setups
