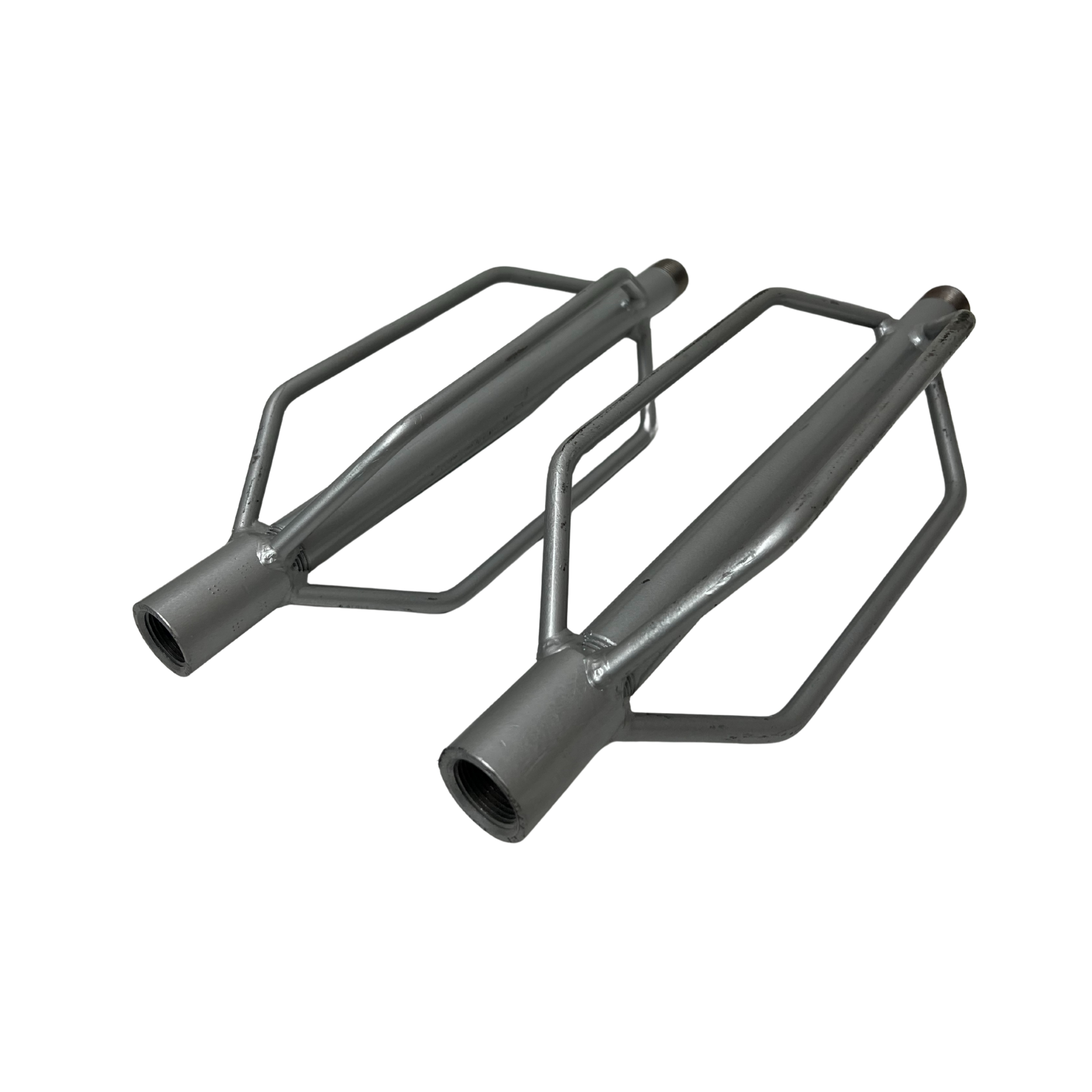

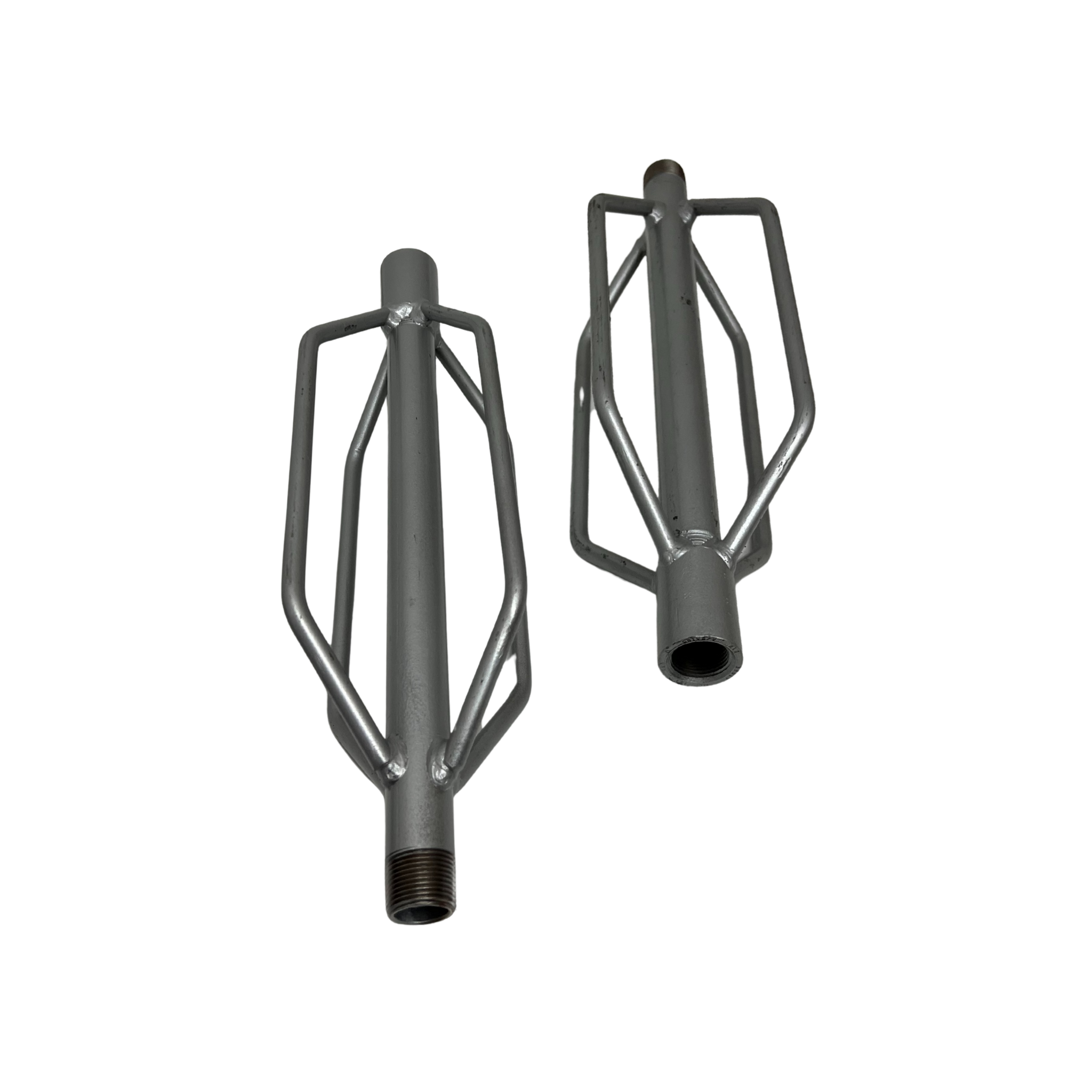

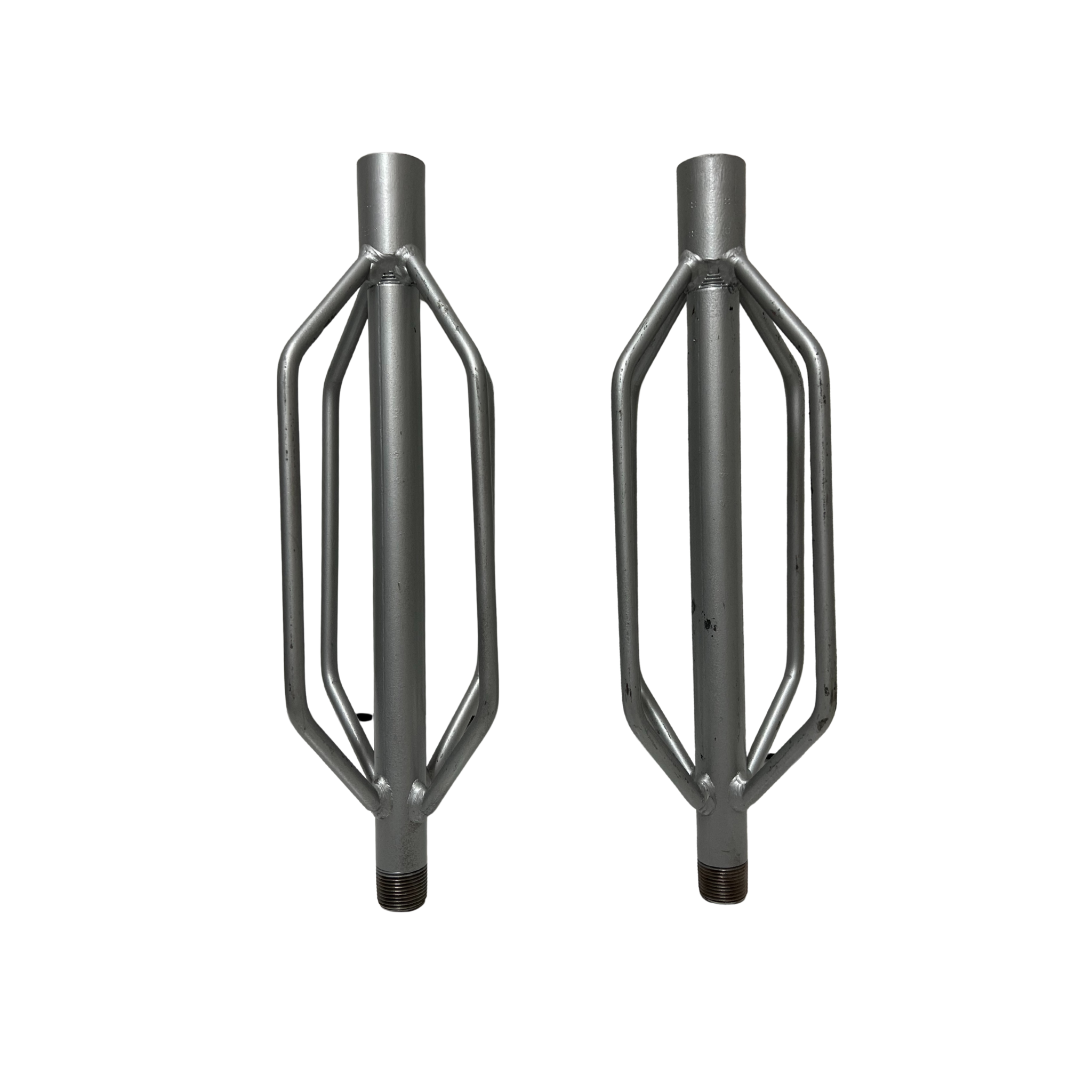

4 Wire Nozzle Skid Extension
4 hardened steel runners are angles to provide additional support for sewer nozzle.
Available in 1″ Hose Connection or 3/4″ Hose Connection or 1/2″ Hose Connection.
| 1″ Size | 3/4″ Size | 1/2″ Size | Description |
| MNE-4 | MNE-34 | MNE-412 | For Use with 4″ Pipe |
| MNE-6 | MNE-36 | MNE-612 | For Use with 6″ Pipe |
| MNE-8 | MNE-38 | MNE-812 | For Use with 8″ Pipe |
| MNE-10 | MNE-310 | MNE-1012 | For Use with 10″ Pipe |
| MNE-12 | MNE-312 | MNE-1212 | For Use with 12″ Pipe |
Available for retail purchase on our official Shopify store.
Click the logo below to shop this product.
4 Wire Nozzle Skid Extension
Nozzle skid extension with four steel runners for centering, guiding, and protecting sewer jetting nozzles inside pipelines.
The 4 Wire Nozzle Skid Extension is designed to provide support and protection for sewer jetting nozzles while operating inside pipelines. This nozzle skid extension helps keep the nozzle centered as it moves through the pipe during jetting operations.
The skid features four hardened steel runners with an angled design that supports and guides the nozzle through the pipeline. This configuration helps reduce direct contact with the pipe wall while maintaining controlled movement during operation.
The unit is available with 1″, 3/4″, or 1/2″ hose connections and is designed for use in pipe sizes from 4″–12″.
Key Features
- 4 hardened steel runners for nozzle support
- Angled runner design for guiding the sewer nozzle
- Provides additional protection during sewer jetting operations
- Hose connection options: 1″, 3/4″, or 1/2″
- Compatible pipe sizes: 4″–12″
Applications
- Sewer jetting operations
- Nozzle protection inside pipelines
- Municipal sewer maintenance
- Contractor jetting equipment setups
